Hometree
SMART HOME

Home IoT System for a convenient smart home

SMART Home Kit

SMART Home Kit

Home IoT that starts in my hand,
Enjoy a convenient and smart life.
Smart
Home Kit

Smart Home Kit

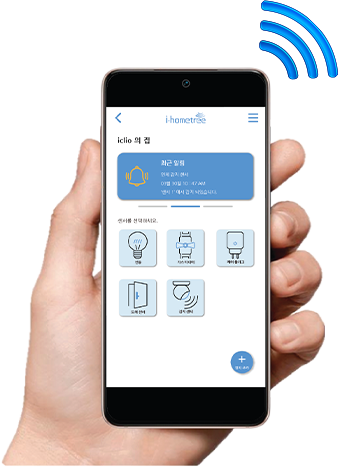

  • You can control all the products of the smart home kit with a mobile device (such as a smartphone or tablet).

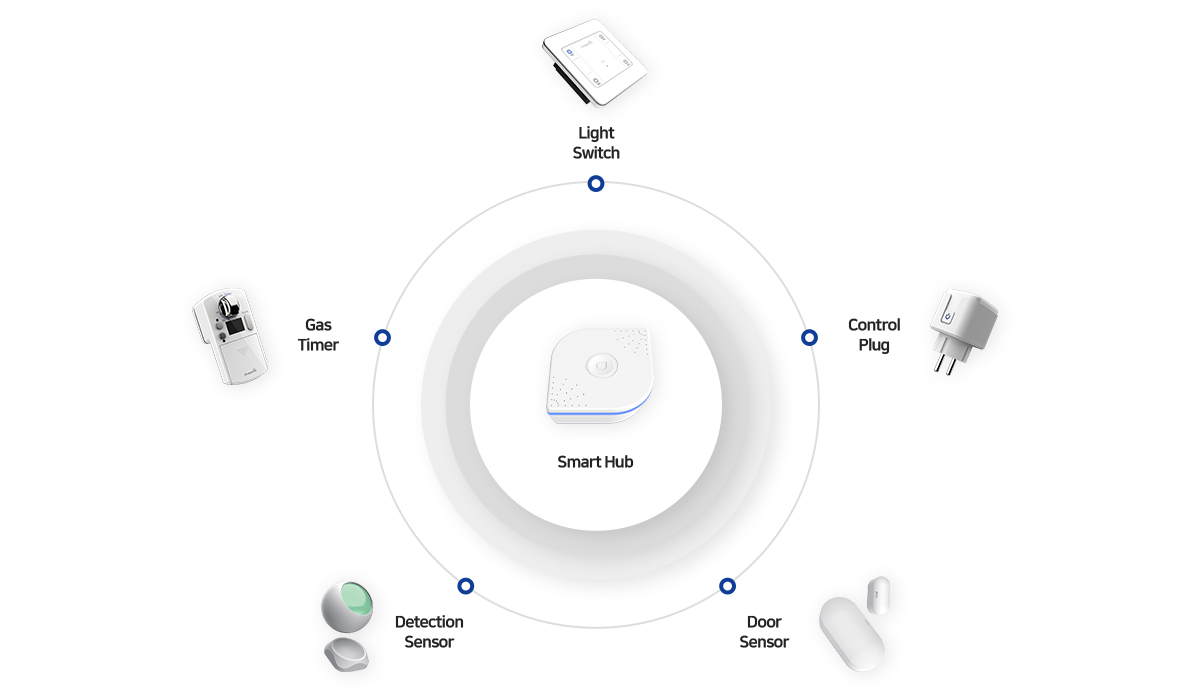

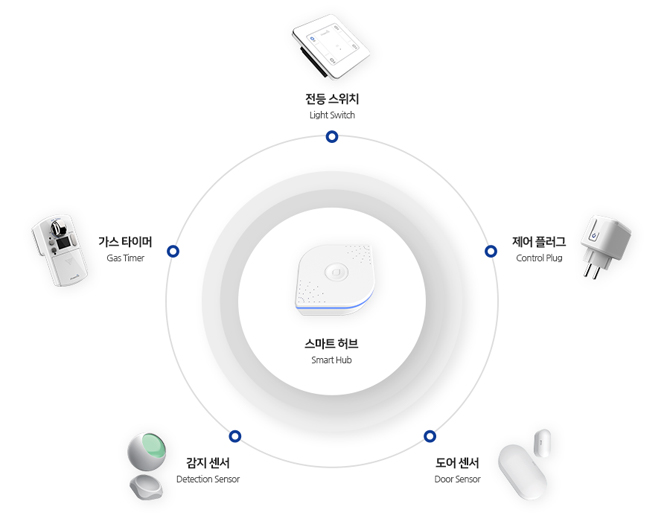

  • Up to 16 devices such as light control, outlet control, gas timer, door open sensor, and human body sensor can be connected, and the user account can be accessed from various devices, allowing easy sharing with family members.
  • It is available for both Android and iOS and can be easily downloaded from the Play Store and App Store.
  • Through the Hometree management site, functions required for customer A/S (OTA update, remote log and control, notice, etc.) are provided.

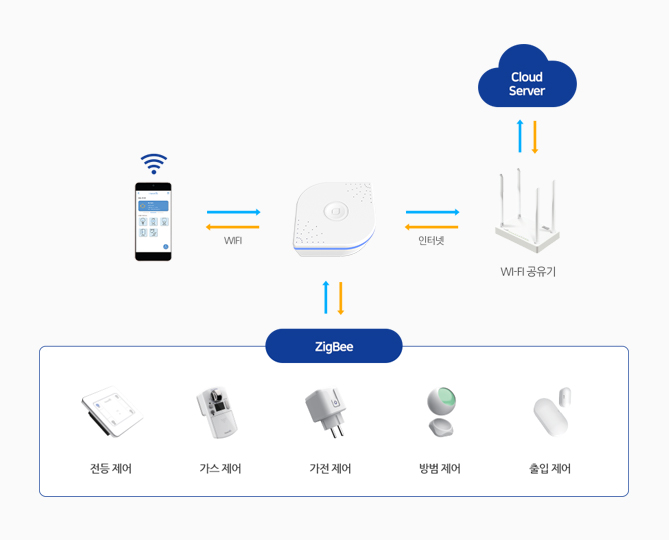

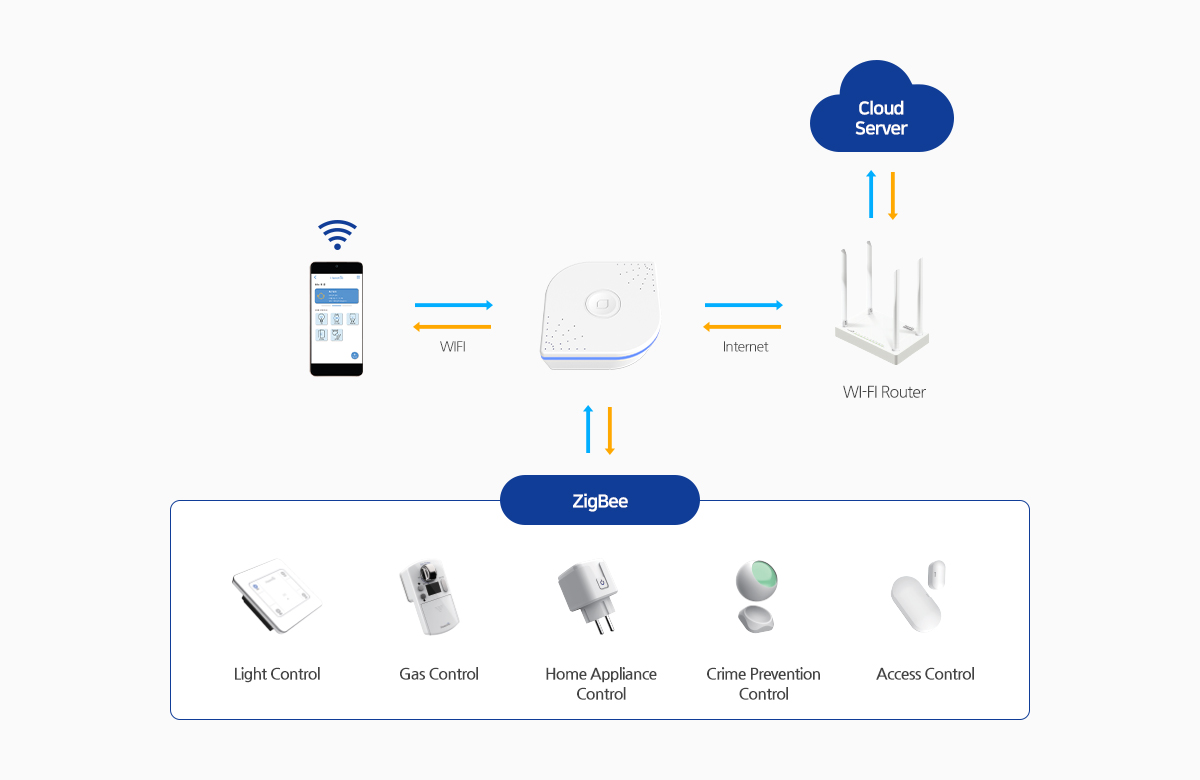

  • The smart hub and other devices are connected using Zigbee wireless communication, and when the device is registered in the app, it can be easily controlled with the app from outside.
Smart Hub Smart Hub

You can set up a Wi-Fi router at home to a smart hub through a mobile device, register IoT devices, and easily control it with a mobile app from outside.
It is recommended to install it near a Wi-Fi router and supplies power using a USB Type-C cable.

  • Model Name

    CWP-SH-ZBWF

  • Wireless Communication

    Wi-Fi & ZigBee V3.0

  • Rated Voltage

    DC 5V (USB-C TYPE)

  • Dimensions

    100 X 100 X 35.4 mm

  • Other

    Interlocking with other smartphones, interworking with IoT devices
    Gateway

Light Switch Light Switch

After replacing the existing switch and installing it, you can turn the light on and off from outside by registering the switch with the app.
You can turn on the lights when your pet is alone or before going home.

  • Rated Voltage

    AC 220V (AC~)

  • Dimensions

    120 X 120 X 54 mm

  • Other

    Light ON/OFF control

Control Plug Control Plug

You can remotely control home appliances by plugging the control plug into a general outlet.
When you go out, you can check the status with your smartphone when the plug power is not turned off, and you can control ON/OFF.

  • Rated Voltage

    AC 220V, 16A

  • Dimensions

    50 X 50 X 83 mm

  • Other

    Manual ON/OFF possible

Gas Timer Gas Timer

Check the condition of the gas valve from the outside,
You can lock it.
The valve can be closed automatically using the timer function, and the time can be set. You can check the status in real time because notifications come to your smartphone.

  • Rated Voltage

    DC 6V (AA Battery)

  • Dimensions

    70 X 143 X 74 mm

  • Other

    Timer time setting, voice support

Detection Sensor Detection Sensor

The human body sensor can be used by attaching it to a desired location such as the ceiling or wall.
When motion is detected by the sensor, you can check it with a real-time app notification.

  • Rated Voltage

    DC 3 V (CR123A Battery)

  • Detection Distance

    8m

  • Dimensions

    48.4 X 53.4 mm

  • Other

    Battery replacement alarm

Door Sensor Door Sensor

After attaching the door sensor to the front door, window, drawer, etc. and registering the sensor with the app, you can check that the door, window, drawer, etc. are opened with the app.

  • Rated Voltage

    DC 3V (CR2032 Battery)

  • Battery Life

    More than 1 year (based on 20 times a day)

  • Dimensions

    Main 52.6 X 26.5 X 13.8 mm
    Magnet 25.5 X 12.5 X 13 mm

  • Other

    Battery replacement alarm LED
